TALCO: Tiling Genome Sequence Alignment using Convergence of Traceback Pointers

PDF

code: Hardware + software

Abstract

Pairwise sequence alignment is one of the most fundamental and computationally intensive steps in genome analysis. With the improving costs and throughput of third-generation sequencing technologies and the growing availability of whole-genome datasets, longer alignments are becoming more common in the field of bioinformatics. However, the high memory demands of long alignments create significant obstacles to hardware acceleration. Banding techniques allow recovering high-quality alignments with lower memory, but they also require more memory for long alignments than what is typically available on-chip in hardware accelerators. Recently, tiling-based hardware accelerators have made remarkable strides in accelerating sequence alignment, achieving three to four orders of magnitude improvement in alignment throughput over software tools without any restrictions on alignment length. However, it is crucial to note that existing tiling heuristics can cause the alignment quality to degrade, which is a critical concern for the wider adoption of accelerators in the field of bioinformatics. To address this issue, this paper describes TALCO – a novel method for tiling long sequence alignments, that, similar to prior tiling techniques, maintains a constant memory footprint during the acceleration step independent of alignment length. However, unlike previous techniques, TALCO also ensures optimal alignments under banding constraints. TALCO does this by leveraging the convergence of traceback paths beyond a tile to a single point on the boundary of that tile – a strategy that generalizes well to a broad set of sequence alignment algorithms. We demonstrate the advantages of TALCO by applying it to two different and widely-used banded sequence alignment algorithms, X-Drop and WFA-Adapt. To the best of our knowledge, this is the first time that a tiling technique is being applied to a non-classical algorithm for sequence alignment, such as WFA-Adapt. The TALCO tiling strategy is beneficial to both software and hardware. When implemented in software, the TALCO strategy reduces the memory requirements for X-Drop and WFA-Adapt algorithms by up to $39 \times$ and $57 \times$, respectively, and when implemented as ASIC accelerator, it provides up to $1,900 \times$ and $2,000 \times$ improvement in alignment throughput/watt over CPU baselines implementing the same algorithms. Compared to state-of-the-art GPU and ASIC baselines implementing tiling heuristics, TALCO provides up to $50 \times$ and $1.1 \times$ improvement in alignment throughput, respectively, while also maintaining a higher alignment quality. Code availability: https://github.com/TurakhiaLab/TALCO.

I. INTRODUCTION

Pairwise genome sequence alignment is a fundamental building block of many genomic analysis pipelines [1]-[4] and has been studied extensively over the last several decades [5]-[10]. With improved cost, accuracy, and throughput of long-read genome sequencing technologies, coupled with the widespread availability of complete whole-genome assemblies for a large number of species and individual organisms, the ability to align long genomic sequences has gained significant importance in recent years [11]-[13]. In particular, long-read sequencing has led to major breakthroughs in recent history [14]. In genomic medicine, it helped achieve the fastest genetic diagnosis of newborn patients [15]. It has been used to better characterize structural variations and complex regions in the human genome [16]. Long alignments are also essential in comparative genomics to gain new insights into the evolution of gene families and other genomic features by comparing whole genomes of different species [17], [18].

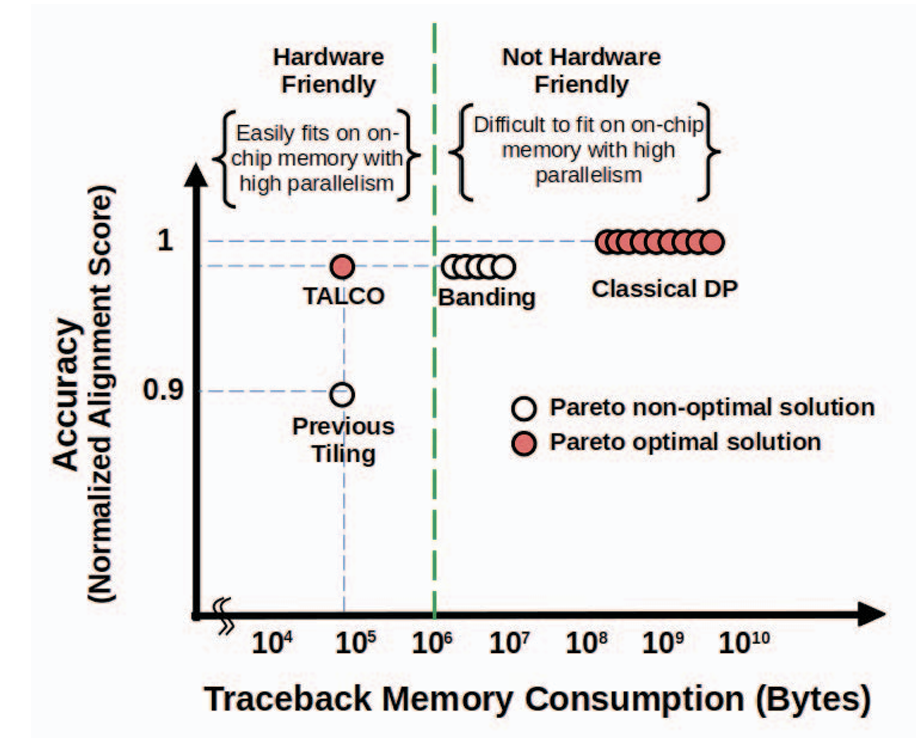

Fig. 1: Accuracy versus memory trade-offs of different alignment techniques highlights how TALCO is Pareto optimal. TALCO achieves the same accuracy as banding techniques while matching the memory requirements of previous tiling techniques.

In sequence alignment, a scoring system is generally used for evaluating and optimizing the quality of different alignments. Classical dynamic programming algorithms [19], [20] yield optimal alignments under the most widely-accepted scoring systems (Section II) but these algorithms are impractical for long alignments due to high memory and computational demands. Therefore, widely-used bioinformatic software packages typically utilize various banding strategies for restricting the alignment search space (Section II). This results in a minor drop in alignment scores relative to full dynamic programming but helps to compute long alignments under practical runtime and memory constraints (Figure 1). However, the memory requirement of these banded algorithms increases linearly with sequence length, which poses significant challenges for hardware acceleration of long alignments. On one hand, the memory requirement is too large for performing long alignments within the limited on-chip memory available on hardware accelerators, and on the other hand, off-chip memory does not offer sufficient bandwidth to achieve meaningful acceleration [21]. This challenge was recently circumvented in the Darwin co-processor [7] through a greedy tiling strategy that allowed alignment subproblems to fit within the on-chip memory, thereby greatly speeding up the compute-intensive portions of the alignment step. This strategy was later incorporated into several other genomic accelerators [8]-[10], [22]-[25]. Although, with appropriate parameters, this strategy can deliver optimal alignment results with a high degree of certainty; however, it cannot guarantee the alignments to be optimal or equivalent to their software counterpart which does not employ the same tiling approach (Figure 1), which is a critical concern in the field of bioinformatics and imposes a barrier to the wider adoption of hardware accelerators in real-world applications of critical significance, such as the genomic diagnosis of patients [26]. Since sequence alignment typically accounts for $30\% - 90\%$ of the total execution time in genomic workloads [27]-[29], based on Amdahl's law [30], there is diminishing return to accelerate this step further over the three to four orders of magnitude speedup already achievable with tiling-based accelerators. Instead, for wider adoption, future hardware accelerators should commensurately focus on improving and guaranteeing alignment quality.

To that end, in this paper, we introduce TALCO - a novel strategy for tiling alignments using the convergence of traceback pointers. TALCO is a highly generalizable strategy that can be used to perform tiling on a wide range of banded alignment algorithms while ensuring alignment result equivalence. Alignment banding strategies are commonly employed in bioinformatic software for long alignments and have been widely accepted by the bioinformatics community [5], [31]-[34]. This makes TALCO highly useful for the hardware acceleration of existing algorithms for long genomic alignments. The paper makes the following contributions:

1. We introduce a novel tiling strategy, TALCO, that guarantees optimality under banding constraints, i.e., it can be applied to any banded sequence alignment algorithm while guaranteeing that the alignment scores are not degraded due to tiling. In that sense, TALCO is complementary to existing accelerators [7]-[10], [22]-[25] as it can be used to substitute their tiling heuristics while assuring alignment quality. TALCO is based on our unique insight that traceback pointers in alignments have weak long-range dependencies, resulting in the convergence of multiple alignment paths.

2. To demonstrate generalizability, we apply TALCO to widely-used banded sequence alignment algorithms, X-Drop and WFA-Adapt, which are based on very different approaches. We call the modified algorithms TALCO-XDrop and TALCO-WFAA, respectively. To the best of our knowledge, TALCO-WFAA is the first accelerator based on the WFA-Adapt algorithm capable of performing arbitrary long sequence alignments.

3. We demonstrate the benefits of TALCO through software implementation of TALCO-XDrop and TALCO-WFAA that achieve up to $39\times$ and $57\times$ improvement in memory footprint, respectively, for long alignments compared to software baselines. We will open-source our software implementation on publication. We also demonstrate that the convergence of traceback paths that TALCO leverages in these algorithms happens fast, requiring only $3 - 15\%$ for redundant computation of cells in the overlapping regions of tiles in TALCO for alignment error rates ranging from $1 - 30\%$.

4. We present a hardware accelerator design for TALCO-XDrop and TALCO-WFAA which can perform arbitrary long alignments with a small on-chip memory requirement. We performed ASIC analysis of TALCO-XDrop and TALCO-WFAA using FreePDK 45nm process technology. TALCO-XDrop (TALCO-WFAA) requires $58.3\mathrm{mm}^2$ $(30.0\mathrm{mm}^2)$ area and $19.0\mathrm{W}$ $(32.9\mathrm{W})$ of power. Overall, we found that TALCO-XDrop (TALCO-WFAA) ASIC achieves up to $1,900\times$ $(2,000\times)$ improvement in alignment throughput/watt over software baselines implementing the same algorithm. TALCO also improves the alignment throughput over state-of-the-art GPU and ASIC baselines that implement tiling heuristics by over $50\times$ and $1.1\times$ respectively. We have released our RTL code and OpenROAD scripts for ASIC analysis, accessible from GitHub (https://github.com/TurakhiaLab/TALCO).

5. We also synthesized TALCO-XDrop and TALCO-WFAA for FPGAs available on the Amazon EC2 FPGA instances (f1.2xlarge), which achieved operating frequencies of $119\mathrm{MHz}$ and $166\mathrm{MHz}$ and throughput within $0.15\times$ and $0.29\times$ of ASIC implementations, respectively.

The rest of the paper is organized as follows. Section II provides relevant background on genome sequence alignment, banding techniques, and existing tiling techniques for long genome sequence alignment. We then explain TALCO and its application on two widely adopted sequence alignment algorithms in Section III. Section IV describes the hardware design of TALCO-XDrop and TALCO-WFAA. The experimental methodology is described in Section V. We present the results in Section VI. Section VII describes the related work and Section VIII concludes the paper.

II. BACKGROUND

Sequence Alignment: Given two input sequences, a query sequence $Q = q_{1},q_{2},\dots,q_{n}$ and a reference sequence $R = r_1,r_2,\dots,r_m$ the problem of pairwise sequence alignment is to assign gaps (denoted by $- \cdot$ in $R$ and $Q$ to produce a valid alignment that maximizes the alignment score [7]. In a valid sequence alignment, each character in $R$ and $Q$ is aligned with a corresponding character or a gap in the other sequence (Figure 2b,d). Alignments can be scored in many different ways with the typical objective of maximizing the number of matching characters in the alignment while minimizing the number of mismatches and gaps that need to be inserted in each sequence to achieve the alignment. One particular instance of the scoring strategy involves minimizing the Levenshtein distance [35], in which each mismatch or gap in the alignment increments the distance by one. Gotoh's affine gap [36] strategy assigns different scores for the opening and extension of gaps, providing a more accurate model for how gaps appear in biological sequences.

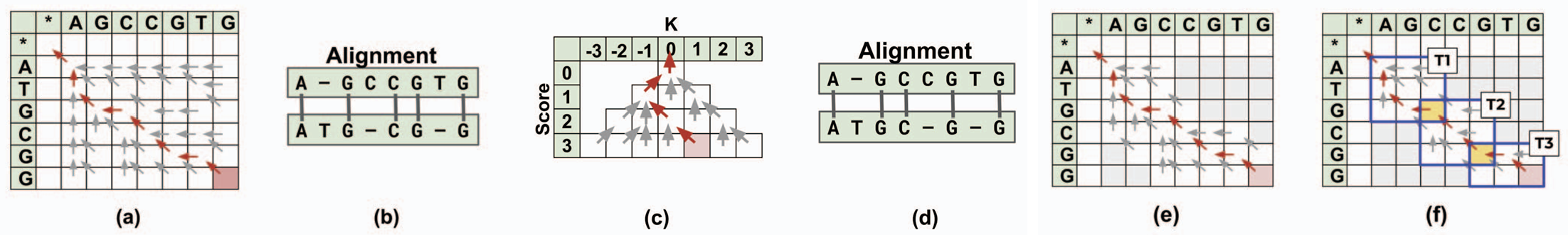

Fig. 2: Traceback matrices and alignments obtained from Needleman-Wunsch and WFA alignment algorithms, for example, input sequences $R = \text{AGCCGTG}$ and $Q = \text{ATGCGG}$. (a) Traceback matrix for the Needleman-Wunsch algorithm with scoring parameters: ${match=2, mismatch=-1, gap=-1}$. Each cell stores a single traceback pointer pointing up, left, or diagonal, with the traceback path starting from the pink cell highlighted in red. (b) Alignment corresponding to the traceback path in (a). (c) Traceback matrix for the WFA algorithm with scoring parameters: ${mismatch=1, gap=1}$, with the traceback path starting from the pink cell highlighted in red. (d) Alignment corresponding to the traceback path in (c). (e) Traceback matrix for the X-Drop algorithm (adaptive banding) with scoring parameters same as (a) and $\{x = 3\}$. Pruned cells are highlighted in gray, and the traceback path starting from the pink cell is highlighted in red. (f) Illustration of the tiling heuristic (GACT) with parameters: $\{T = 3, O = 1\}$. Overlapping cells between two consecutive tiles are highlighted in yellow, and the traceback path starting from the pink cell is highlighted in red.

---

Needleman-Wunsch and Smith-Waterman algorithms: These are classical approaches to optimally solve the pairwise sequence alignment problem and are based on dynamic programming (DP) algorithms. The Needleman-Wunsch algorithm [20] solves the global sequence alignment problem, as defined above, while allowing the flexibility to reward each combination of matching or mismatching characters in the alphabet differently in the alignment score. The Smith-Waterman algorithm [19] is designed to find local sequence alignments, i.e., substrings of the input sequences that align with the maximum score. Both algorithms compute a traceback matrix of size $m \times n$, where each cell of the matrix points to one of its adjacent cells (up, left, or diagonal) indicating the direction to arrive at that cell with the maximum score (Figure 2a). The optimal alignment(s) between the two sequences is determined by following a path(s) of traceback pointers in this matrix. Both algorithms have a time and space complexity of $\mathcal{O}(mn)$. Affine gap scoring increases the memory requirement for storing traceback pointers in these algorithms by a constant factor.

WFA algorithm: In 1986, Eugene Myers proposed the $\mathcal{O}(nd)$ algorithm that produces optimal global alignments based on Levenshtein distance [37]. The algorithm works by computing optimal partial alignments of increasing Levenshtein distance until it finds a global alignment between the two input sequences. The algorithm requires $\mathcal{O}(nd)$ time and $\mathcal{O}(d^2)$ memory, where $n$ is the length of the shorter sequence and $d$ is the optimal Levenshtein distance between the sequences. The algorithm uses a triangular-shaped traceback matrix (Figure 2c-d), whose columns correspond to the diagonals of the DP matrix and rows correspond to the alignment score (i.e., the number of mismatches and gaps in the partial alignment up to that row). Each cell stores a traceback pointer with three possible configurations, pointing to the same, adjacent-left, or adjacent-right cell in one row above that cell, using which the optimal alignment can be reconstructed. WFA [38] is a recent extension of the $\mathcal{O}(nd)$ algorithm to support affine gaps and generalized distance measures. Here too, supporting affine-gap penalties result in a constant-fold increase in the memory requirement. When the differences between the two sequences are small, Myers' $\mathcal{O}(nd)$ and WFA algorithms are very fast and memory-efficient in comparison to classical DP approaches. However, the performance can also be worse when the two sequences are long (and hence, have more differences) or dissimilar, or when scoring parameters span a large range of values [39]. BiWFA [40] is a recent extension of WFA that trades runtime for memory efficiency, but it still requires up to hundreds of megabytes for long and noisy alignments.

Banding techniques: Banding techniques improve the speed and memory requirements of the alignment algorithms by heuristically pruning the search space. X-Drop [41] has been a popular banding technique for classical DP algorithms since its incorporation into the BLAST [34] algorithm and virtually all long-read and whole-genome aligners use some form of this banding technique [5], [33]. Briefly, the X-Drop algorithm dynamically prunes out cells at the edges of each anti-diagonal as it computes them if they fall below the best score seen so far by more than a user-defined parameter, $X$ as shown in Figure 2e. The WFA software library also has a different variation of this heuristic, WFA-Adapt (WFAA) [38], which drops the outer columns of the triangular matrix which are lagging much behind the furthest in terms of the number of bases covered in the alignment.

Tiling techniques: Though banding techniques reduce the memory requirement of alignment algorithms, it still usually grows linearly to the lengths of the sequences being aligned. This limits the parallelism as well as the maximum alignment length that can be supported in custom hardware relying on the on-chip memory to achieve massive acceleration. To make alignment more amenable to hardware acceleration, a tiling heuristic, called GACT, was introduced in Darwin [7] and later adapted in other accelerators [8]-[10], [22]-[25]. Briefly, this technique extends an alignment using a series of overlapping tiles, with tile size and overlap determined by fixed parameters, $T$ and $O$ as shown in Figure 2f. It required only $\mathcal{O}(T^2)$ memory, corresponding to a single tile of the alignment and independent of the lengths of sequences being aligned, to be maintained on-chip (the traceback path was stored offchip in $\mathcal{O}(n)$ memory), allowing arbitrary long alignments to be accelerated in hardware with high speedup. In DarwinWGA [8], the authors introduced GACT-X, which incorporated X-Drop banding in GACT. Even though this can give good practical results, the GACT-X heuristic is not guaranteed to provide equivalent alignments to X-Drop and the performance is sensitive to properties of the input sequences, and the choice of $T$ and $O$. So far, tiling has not been explored for the WFA algorithm.

III. TALCO ALGORITHM DESCRIPTION

Motivation: Figure 3 provides motivation for the TALCO algorithm. The figure shows the traceback pointer matrix for two sequences, aligned using the Needleman-Wunsch algorithm with X-Drop banding. Traceback pointers reachable from a starting wavefront (i.e., an anti-diagonal in the matrix) marked with a dotted line are highlighted in red. As the figure shows, alignment paths starting from different cells on the wavefront merge at a single cell in the matrix, highlighted with a blue circle, and then share a common path to the origin (i.e., the top-left cell). Such convergence of traceback pointers from nearby cells (which motivates our definition of a "frontier" below) is a prevalent characteristic observable in many alignments and closely resembles the "rank convergence" property of dynamic programming algorithms found in a previous paper [42]. In that paper, the authors postulated that rank convergence is frequently observed because the score dependence between two cells in the DP matrix weakens as their distance increases, which we observe is also the case with traceback pointers. However, we note here that while TALCO takes advantage of the traceback convergence property to improve the speed of tiling, it is not a necessary condition for the algorithm to work or provide optimal results (under banding constraints).

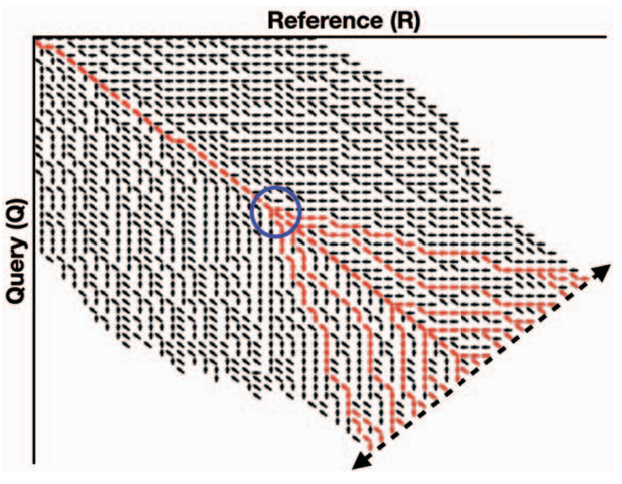

Fig. 3: Illustration of the convergence of traceback pointers using an example traceback matrix for Needleman-Wunsch algorithm with X-Drop banding.

Frontiers and markers: The TALCO algorithm defines two terms, frontier and marker, as follows. The $i^{th}$ frontier, $f_{i}$ is defined as a set of cells in the traceback matrix such that the scores and traceback pointers for cells in $f_{i}$ depend only on the previous frontier, $f_{i - 1}$. Hence, if $j< k$, $f_{j}$ will be computed before $f_{k}$ in the alignment process. There could be many ways to define a frontier in an alignment algorithm. When all frontiers are combined, they cover the entire traceback matrix and adjacent frontiers can have overlapping cells. For example, in the X-Drop algorithm, the $j^{th}$ frontier can be defined as the set of cells in two adjacent wavefronts, $W_{j}$ and $W_{j + 1}$, as shown in Figure 4b. Since a traceback pointer in $W_{j + 2}$ can only point to $W_{j + 1}$ (in case of up or left pointers) or $W_{j}$ (in case of diagonal pointers) wavefronts, any traceback path from $f_{k}$ is guaranteed to pass through $f_{j}$, if $j< k$. For the WFAA algorithm, the frontier definition depends on the choice of scoring parameters. When Levenshtein distance scoring is used, where every mismatch and gap has the same penalty of one, a frontier can be defined as a single row in the triangular traceback matrix. This is because, each row in the matrix corresponds to the alignment score (number of mismatches and gaps) in the partial alignment up to that row, and any alignment with a score of $s + 1$ or higher would contain a partial alignment of score $s$. With affine gap scoring, for e.g., with a penalty of 1 for extending gaps and an extra penalty of 1 for opening gaps, the frontier needs two consecutive rows of the traceback matrix, as alignment from row $s$ must pass through row $s - 1$ or $s - 2$. Therefore, for the WFAA algorithm with the aforementioned scoring parameters, the $j^{th}$ frontier can be defined as the set of cells in two adjacent wavefronts, $W_{j}$ and $W_{j + 1}$, as shown in Figure 5b. A marker is a special frontier $(f_{M})$ in the TALCO algorithm that is used to separate the two phases of the TALCO algorithm.

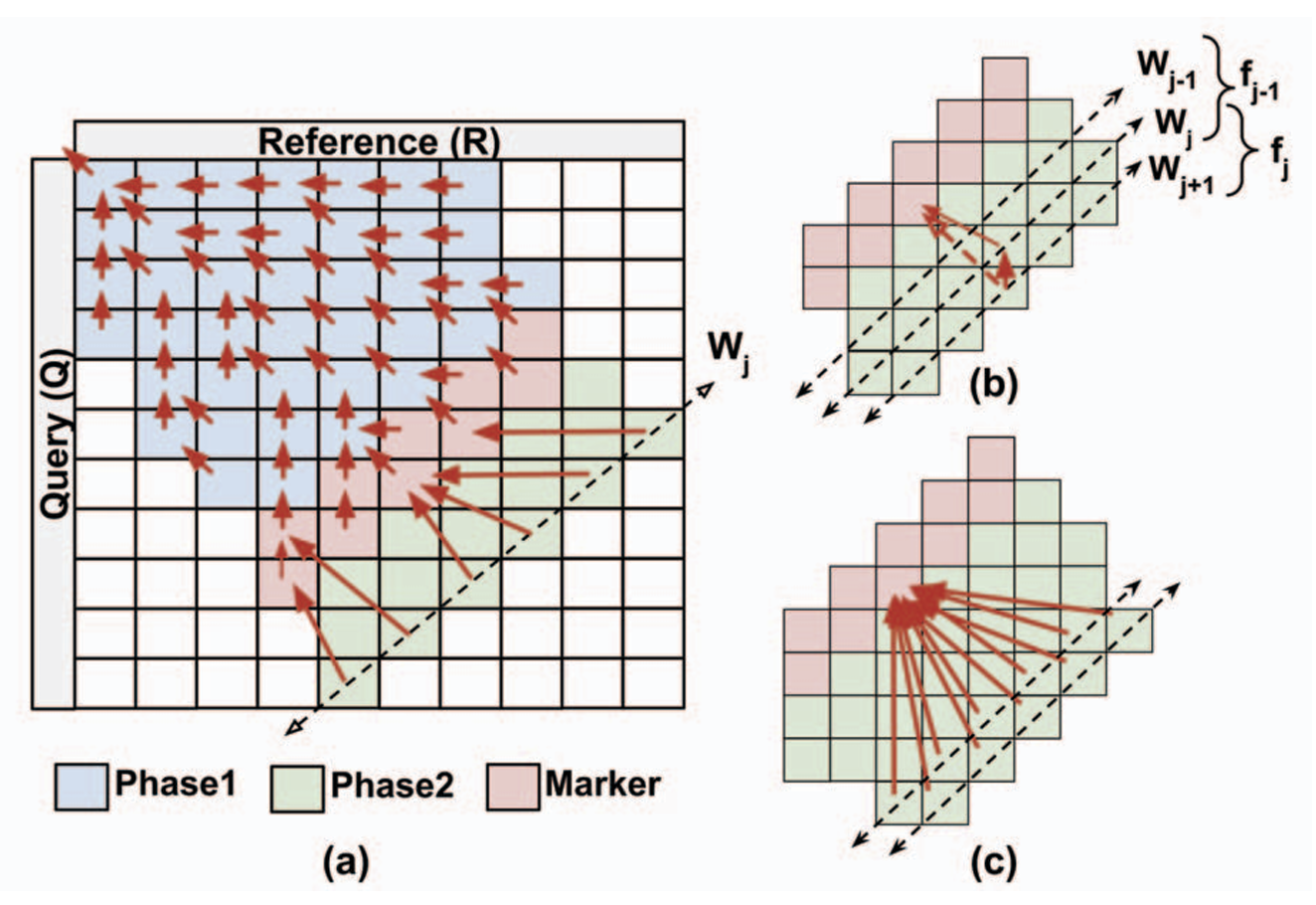

Fig. 4: An illustration of TALCO-XDrop (TALCO applied to the X-Drop algorithm). (a) Traceback pointer matrix in the TALCO-XDrop algorithm with cells colored by the phases in which they were computed (cells outside the X-Drop bands are in white) (b) An illustration of traceback pointer redirection in TALCO-XDrop. The cell on wavefront $W_{j + 1}$ is redirected to the marker cell on its traceback path by the cell on wavefront $W_{j}$ that it would otherwise point to. (c) At convergence, all cells on a frontier (two consecutive wavefronts) would point to the same cell on the marker.

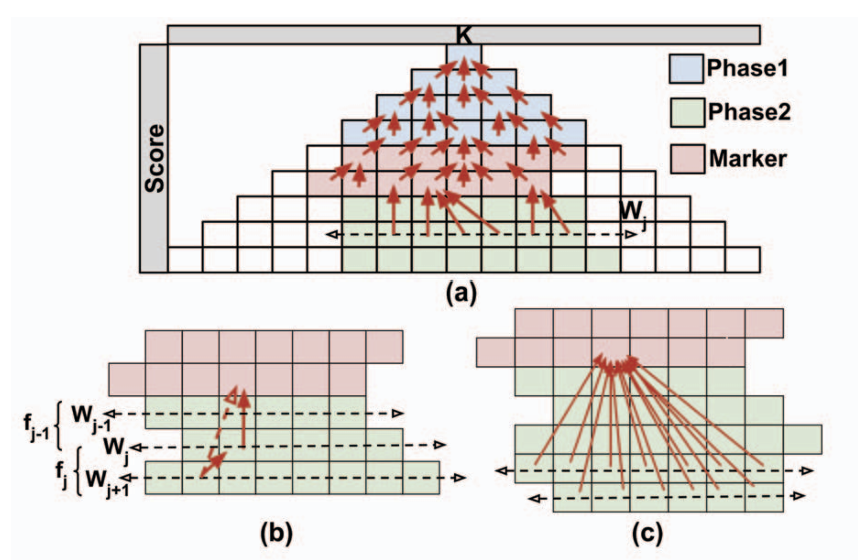

Fig. 5: An illustration of TALCO-WFAA (TALCO applied to the WFA-Adapt algorithm). (a) Traceback pointer matrix in the TALCO-WFAA algorithm with cells colored by the phases in which they were computed (cells outside the WFAA bands are in white). (b) An illustration of traceback pointer redirection in TALCO-WFAA. The cell on wavefront $W_{j + 1}$ is redirected to the marker cell on its traceback path by the cell on wavefront $W_{j}$ that it would otherwise point to. (c) At convergence, all cells on a frontier (two consecutive rows) would point to the same cell on the marker.

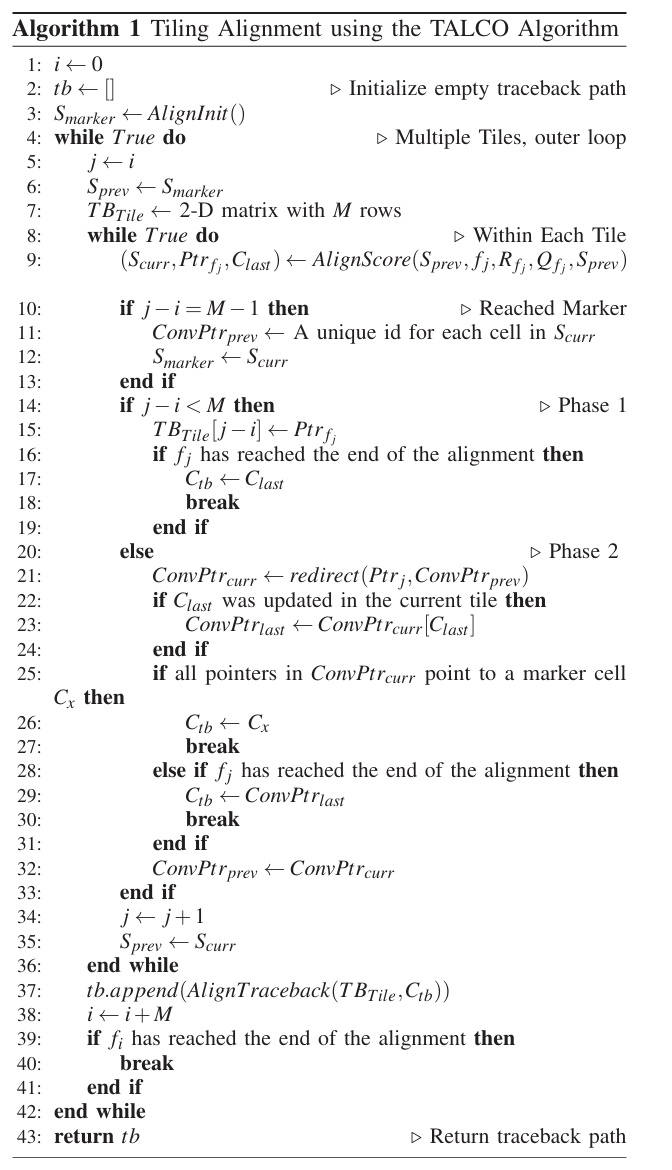

TALCO Algorithm: TALCO takes advantage of the property that if optimal traceback paths starting from every cell on a frontier $f_{Y}$ converge to a single cell $C_{ib}$, then since optimal traceback paths starting from later frontiers would pass through some cell on $f_{Y}$, they would also pass through $C_{ib}$. Algorithm 1 provides the pseudocode for the TALCO algorithm which exploits this insight to tile an arbitrary alignment algorithm, $\boldsymbol{Align}$, which has a scoring function called $\boldsymbol{AlignScore}$ and a traceback function called $\boldsymbol{AlignTraceback}$.

TALCO, within each tile, uses $AlignScore$ to compute the scores $(S_{curr})$ and traceback pointers $(P_{trj})$ for each cell in the current frontier $(f_{j})$. It does this using: a) the scores from the previous frontier $(S_{prev})$, and b) the corresponding bases in $R$ and $Q$ (line 9). $AlignScore$ also returns the coordinates of the last cell, $C_{last}$, which depends on whether it is a global or local alignment algorithm. For example, for a global alignment function, such as WFA-Adapt, $C_{last}$ will correspond to the last cell $(m,n)$ in the dynamic programming matrix, and for a local alignment function, such as X-Drop, $C_{last}$ will correspond to the maximum scoring cell found so far. At the end of each tile (line 37), the current traceback path is extended by up to M frontiers, where M is fixed, using a) the $AlignTraceback$ function on $TB_{Tile}$ b) the traceback matrix for that tile, and c) $C_{tb}$ the starting cell for the traceback.

Each tile in TALCO has two phases. In phase 1, TALCO stores traceback pointers for each cell in the current frontier, $Pr_{f_{j}}$ as a row in $TB_{Tile}$ matrix (line 15). It does this for a total of $M$ frontiers, after which it reaches the marker in the current tile and begins phase 2 (line 20).

In phase 2, TALCO computes convergence pointers, $ConvPrcurr$, for each cell in the current frontier. A convergence pointer indicates the cell on the marker that the traceback path from the corresponding cell on the frontier would lead to. This is done recursively for each cell on the current frontier using a redirect function (line 21), that stores the same pointer of the cell on the previous frontier that the current cell traceback pointer points to. Figures 4 and 5 show how the redirection of pointers works for X-Drop and WFA algorithms. Convergence pointers for only two frontiers, current and previous, need to be maintained in this phase. If all convergence pointers in the current frontier point to the same marker cell (we referred to this frontier earlier as $f_{Y}$), it can be used to determine the starting cell for traceback in the current tile, $C_{tb}$, and terminate phase 2 (lines 25). Figures 4 and 5 illustrate this for X-Drop and WFA algorithms. This method of using the convergence of traceback pointers instead of a greedy approach to determine the starting cell $C_{tb}$ for traceback in a tile is what differentiates TALCO from previous tiling approaches.

Memory requirement: If $B_{max}$ is the maximum number of cells in a frontier, then at most $M\times B_{max}$ pointers and $B_{max}$ scores in $S_{prev}$ and $S_{curr}$ will need to be maintained during phase 1 of TALCO (Algorithm 1). In phase 2, $B_{max}$ pointers will be maintained for frontiers ConvPrprev and ConvPrcurr, with each pointer requiring $log_{2}(B_{max})$ bits for pointing to a unique cell on the marker. Hence, the maximum memory required for a single tile in TALCO is $\mathcal{O}(M\times B_{max} + log_{2}(B_{max})\times B_{max})$. For a local extension algorithm, additional $log_{2}(B_{max})$ memory bits are required to store the score and convergence pointer of the maximum scoring cell. Therefore, the memory requirement for each tile in TALCO depends only on $M$ and $B_{max}$, irrespective of the lengths of input sequences. This also allows a memory-constrained accelerator to fall back to the host when a frontier size exceeds the maximum size it can handle to guarantee equivalent alignment results with and without tiling, a feature that is missing in the previous tiling approaches.

Proof of equivalence: TALCO algorithm (Algorithm 1) is guaranteed to produce alignments identical to Align, when Align takes full input sequences and does not perform tiling. We only provide intuitive proof for this here due to space constraints. Since TALCO uses the marker scores from the current tile to correctly initialize the next tile (line 6), the scores and traceback pointers in TALCO and Align will always match for each cell. The partial alignment produced by TALCO in the current tile (line 37) is also guaranteed to be present in Align without tiling. This is because the TALCO algorithm guarantees that Align traceback also passes through $C_{tb}$ in each tile. For example, consider the case in which all convergence pointers at the current frontier, $f_{j}$, point to a single cell, $C_{x}$, on the marker (line 25). Hence, if traceback Align starts from a cell on a frontier $f_{k}$, which occurs after $f_{j}$, the traceback is guaranteed to include $C_{x}$, which is the value assigned to $C_{tb}$ in line 26. This is because since $k > j$, traceback from every cell on $f_{k}$ passes through some cell $f_{j}$, which passes through $C_{x}$. Remaining parts of the Algorithm set the value of $C_{tb}$ correctly for cases in which convergence does not take place before the end of the alignment is reached (lines 28-29) or when Align algorithm is local and the maximum scoring cell starts before the converging frontier (lines 22-23).

IV. TALCO ACCELERATOR DESIGN

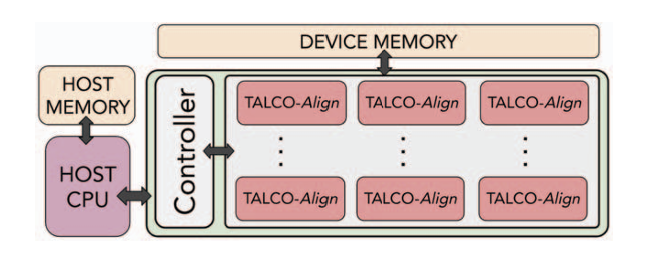

Figure 6 provides an overview of accelerator design for TALCO-Align (TALCO applied to tile an algorithm, Align). The accelerator is implemented as a co-processor. Host CPU issues alignment tasks along with the addresses of sequence pairs to be aligned to parallel TALCO-Align units and receives the output. Host CPU also performs alignments that fail because of frontier lengths exceeding the hardware constraints. The overhead for failed alignments corresponds to the alignment speed of the software. Next, we describe the TALCO accelerator hardware design for tiling X-Drop and WFA-Adapt algorithms.

Fig. 6: Overview of the interconnection between the host CPU and TALCO-Align co-processor, where Align denotes the sequence alignment algorithm that TALCO is applied to. In this paper, we discuss Align for X-Drop and WFA-Adapt.	Fig. 7: TALCO-XDrop hardware design. (a) Systolic architecture of TALCO-XDrop array with $\mathrm{N}_{\mathrm{PE}} = 4$. (b) Query blocking applied to an example dynamic programming (DP) matrix whose cells are colored corresponding to the PE computing them (uncomputed cells outside the X-Drop bands are in white).

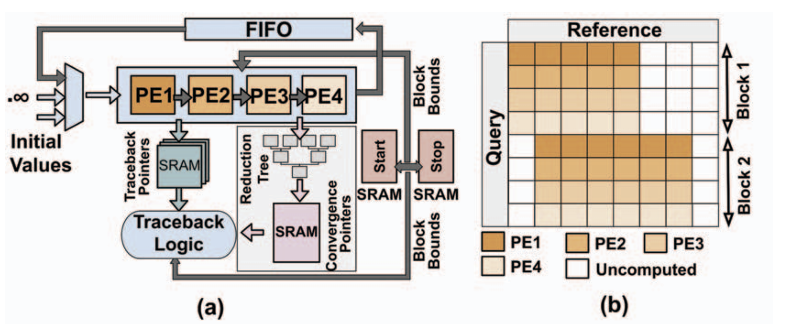

TALCO-XDrop Accelerator Design: The TALCO-XDrop accelerator closely resembles GACT-X [8] but requires additional elements to incorporate the second phase of the TALCO algorithm shown within the gray box in Figure 7a. The TALCO-XDrop accelerator aligns two sequences, a reference $(R)$ and a query $(Q)$, based on the X-Drop algorithm with TALCO tiling. Input sequences are ASCII encoded but stored using 3 bits per base-pair (bp) in SRAM for an extended DNA alphabet $\sigma \in \{A, C, G, T, N\}$, where $N$ is any ambiguous character. Tiling parameters $M$, the number of wavefronts from the beginning of a tile to the marker, and $B_{max}$, the maximum number of cells in a wavefront, are fixed at design time. If any wavefront exceeds $B_{max}$ cells, the accelerator falls back to the CPU with an invalid flag in the corresponding output to perform the alignment. Alignment scoring parameters can be passed to hardware as input, and include the substitution matrix $(W)$, gap open penalty $(o)$, and gap extend penalty $(e)$.

As shown in Figure 7, the TALCO-XDrop accelerator calculates the scores of the DP matrix using a systolic array of processing elements (PEs), exploiting the available wavefront parallelism along a stripe of $N_{PE}$ rows, similar to GACT-X [8]. Figure 7 shows a TALCO-XDrop array with $N_{PE} = 4$. During phase one, each PE computes the scores according to the Needleman-Wunsch [20] scoring equations with an affine gap [36] penalty (Eqs. (1) to (3)). The final score is calculated using Eq. (3) which determines the direction pointer. Each pointer has 4 bits: 2 bits to encode Eq. (3) and 1 bit each for Eq. (1) and Eq. (2). Further, a running maximum score $(H_{max})$ is maintained in a systolic fashion. A stripe calculation terminates when scores of all cells along a column drop below $(H_{max} - X)$, where $X$ is an input parameter of the X-Drop algorithm as shown as the uncomputed region in Figure 7. $H$ and $D$ values for the last row of a stripe are stored in a FIFO, as shown in Figure 7 since they are required for computing the next stripe. Depending upon whether the value in the last row of the previous stripe was calculated or not, values are read from FIFO, or initialized to $-\infty$. Each PE has a dedicated SRAM bank to store traceback pointers and additional SRAMs are used to store the start and end positions of each stripe, as they vary based on the $X$ value, and are during the traceback.

$I_{i,j} = \max \{H_{i,j - 1} - o,I_{i,j - 1} - e\} \quad (1)$

$D_{i,j} = \max \{H_{i - 1,j} - o,D_{i - 1,j} - e\} \quad (2)$

$H_{i,j} = \max \{I_{i,j},D_{i,j},H_{i - 1,j - 1} + W(R_i,Q_j)\} \quad (3)$

Traceback pointers are only stored during phase 1 of TALCO (Algorithm 1). When the TALCO algorithm moves to phase 2 (Algorithm 1), each PE uses pointer redirection to calculate the cell on the marker to which its traceback path would lead, as described in Section III and shown in Figure 5b. A single register $H_{max}^{\prime}$ keeps track of the maximum score seen so far. A reduction tree is used to determine if all $N_{PE}$ pointers computed by $N_{PE}$ PEs in each cycle for the subset of the wavefront in the current stripe have converged to the same cell. If they have converged, the index of the converged cell on the marker is stored in a separate SRAM for convergence pointers (Figure 7) addressed by the current wavefront index, otherwise, $-1$ is stored. Once pointers for all subsets of a frontier are obtained, appended values determine convergence. If all the values are the same, convergence is detected, otherwise the algorithm continues.

Once the convergence is detected on a frontier, score calculation is performed till $H_{max}^{\prime} > H_{max}$. If the criteria match, traceback logic starts from the converged point, otherwise, the cell with $H_{max}$ serves as the starting point. The traceback logic traverses each step depending on the pointers and start/stop values stored in the SRAM. The traceback path of the current tile is sent to the software to reconstruct the alignment.

TALCO-WFAA Accelerator Design: Similar to TALCO-XDrop, TALCO-WFAA Array hardware design accelerates the alignment of two sequences, a reference $(R)$ and a query $(Q)$ using the TALCO-WFAA algorithm explained in Section III. Input sequences are again ASCII encoded and stored using 3 bits in SRAM for an extended DNA alphabet $\sigma \in \{A,C,G,T,N\}$. TALCO-WFAA accelerator computes the alignment by iteratively performing extend, reduce, and compute steps described in WFA-Adapt [38]. Here too, tiling parameters $M$, the number of wavefronts from the beginning of a tile to the marker, and $B_{max}$, the maximum number of cells in a wavefront, are fixed at design time. If any row exceeds $B_{max}$ cells, the accelerator falls back to the CPU with an invalid flag in the corresponding output to perform the alignment. In addition, WFA-Adapt alignment parameters are decided at design time as they determine the traceback pointer size and cell dependencies [43]. In our case, we set mismatch $(x)$ gap open $(o)$ and gap extend $(e)$ penalties to 1, 2, and 1, respectively, so that the frontier consists of two rows in the traceback matrix, as described in Section III.

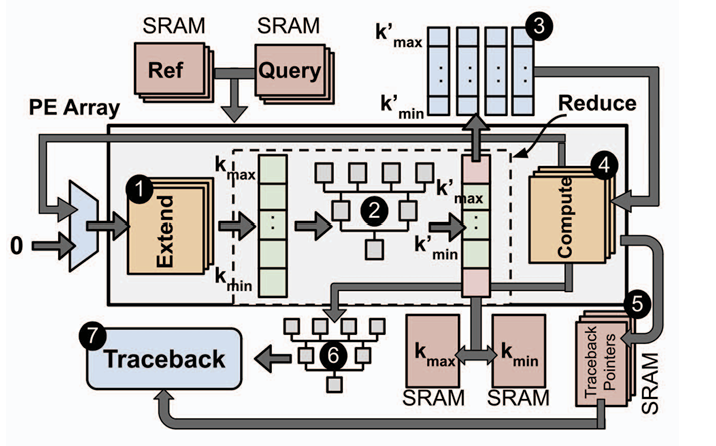

Fig. 8: TALCO-WFAA hardware design

Figure 8 shows an array of the TALCO-WFAA accelerator which exploits parallelism using $N_{ext}$ extend and $N_{comp}$ compute modules. Due to WFA-Adapt's irregular access pattern, we dedicate a pair of SRAM to store query and reference sequences for every extend and compute block. ❶During the first phase of TALCO-WFAA, each extend module receives a cell offset and a $K$ position in the triangular matrix. On the start signal, extend compares bases of $R$ and $Q$ from positions $r_i$ and $q_i$ respectively, calculated using the cell offset and $K$ until a mismatch is found, and returns the new offset. To exploit parallelism, multiple consecutive bases of $R$ and $Q$ are compared simultaneously and a reduction tree is used to compute the offset of the earliest mismatch. Once a new offset for all the cells, within $k_{max}$ and $k_{min}$, corresponding to a score in the triangular matrix is computed, reduce module is sent a start signal. Reduce logic performs pruning of cells at the boundaries of each new row whose new offsets are left far behind based on the WFA-Adapt heuristic [38]. ❷ Another reduction tree is used to determine distant cells and generate $k_{max}^{\prime}$ and $k_{min}^{\prime}$ stored in dedicated SRAMs as shown in Figure 8. ❸ Four arrays of registers, one for each $H_{s - 1}$, $I_{s - 1}$, $D_{s - 1}$, and $H_{s - 2}$ rows in the triangular matrix are used to store cell offsets of a frontier. ❹ Next, compute module finds the farthest-reaching cell offset for a cell based on the previously computed frontier using Eqs. (4) to (7) of the WFA algorithm [38]. ❺ Compute further calculates the traceback pointers and stores them in SRAM and the iteration continues.

$I_{i,K} = \max \{M_{s - o,K - 1} + 1,I_{s - e,K - 1} + 1\} \quad (4)$

$D_{s,K} = \max \{M_{s - o,K + 1},D_{s - e,K + 1}\} \quad (5)$

$X_{s,K} = \max \{I_{s,K},D_{s,K},M_{s - s,K} + 1\} \quad (6)$

$H_{s,K} = X_{s,K} + LCP(Q[X_{s,K} - K,n - 1],R[X_{s,K},m - 1] \quad (7)$

In the second phase, extend and reduce modules perform the conventional tasks however, compute module, instead of traceback pointers, convergence pointers are determined and stored in registers $H_{s - 1}$, $I_{s - 1}$, $D_{s - 1}$, and $H_{s - 2}$. No further traceback pointer SRAM memory utilization occurs. ❻ A reduction tree is used to detect convergence in a frontier. ❼ If converged, traceback logic generates the compact CIGAR one character at a time using the pointers and $k_{max}$, and $k_{min}$ values stored in the SRAM. If the end of sequences is reached before convergence, traceback starts from $(m,n)$ where $m$ and $n$ are the lengths of reference and query sequences, respectively. The result is generated as a compact CIGAR and later unpacked into full CIGAR using CPU threads.

TALCO-WFAA accelerator design takes some inspiration from WFA-FPGA design [43]. Apart from the extra logic to incorporate TALCO's phase 2, TALCO-WFAA and WFA-FPGA have two additional differences in their implementation. First, WFA-FPGA accesses SRAM to calculate the next wavefront offsets from the previous, while TALCO-WFAA uses dedicated registers (in ❸) to reduce memory accesses that favor hardware acceleration (this works better on ASICs, but WFA-FPGA design is more FPGA-friendly). Furthermore, WFA-FPGA has parallel extend units but a single compute unit is used, however, TALCO-WFAA exploits parallelism with both extend (in ❶) and compute (in ❹) units.

V. EXPERIMENTAL METHODOLOGY

Dataset: To generate sequence pairs for evaluating alignment throughput and accuracy at different alignment lengths and error rates, we started with the human genome assembly, GRCh38, only using the 1-22, X, and Y chromosomes. Using this as the reference, we simulated 32 sets of long reads using PBSIM2 [44] with lengths ${10, 20, 50, and 100}$ Kbp and error rates {1%, 5%, 15%, and 30%}, resembling error profiles of Pacific Biosciences (PacBio) and Oxford Nanopore Technology (ONT) (Table I). Each set included 20,000 reads. PBSIM2 provided the subset of the reference genome aligning with each read, and the corresponding alignment, as output. Default settings of the continuous long read (CLR) [45] model were used in PBSIM2 to generate PacBio reads and tuned to model ONT reads [46].

Read Type	PacBio				ONT
Substitution error	0.06%	0.28%	0.83%	1.65%	0.39%	1.97%	5.91%	11.82%
Insertion error	0.46%	2.28%	6.83%	13.65%	0.25%	1.21%	3.64%	7.27%
Deletion error	0.48%	2.45%	7.35%	14.70%	0.36%	1.82%	5.45%	10.91%
Total error	1%	5%	15%	30%	1%	5%	15%	30%

TABLE I: Error profile of the read sets

Baseline Methods: We used Libgaba [47], WFA-Adapt [38], BiWFA [40], Edlib [48], and Scrooge [10] as our software (CPU) baselines. Specifically, we compared the alignment throughput, memory footprint, and power consumption of TALCO-XDrop with Libgaba (semi-global alignment with X-Drop termination), and TALCO-WFAA with the WFA-Adapt algorithm in WFA2-lib, since Libgaba (WFA-Adapt) algorithm is equivalent to TALCO-XDrop (TALCO-WFAA), whereas other baselines are included for alignment throughput comparison only. We evaluate BiWFA v2.3 with default settings and affine gap scoring scheme, and Edlib v1.2.7 with default settings.

All CPU analyses were performed on a 64-core Intel Xeon Silver 4216 processor, running at 2.1 GHz with 384 GB DDR4 RAM clocked at 3.2 GHz. We demonstrate the benefits of TALCO using CPU implementations of TALCO-XDrop and TALCO-WFAA, implemented in $\mathbb{C} + +$ with multithreading using OpenMP [49] and compiled using $\mathrm{g} + + - 10.3$. For a fair comparison, all baselines were configured to obtain the maximum throughput without affecting the alignment score obtained from the recommended default settings. Scoring and other input parameters for TALCO-XDrop and TALCO-WFAA were tuned to match the baseline tools. We implemented a software version of TALCO-XDrop from scratch in $\mathbb{C} + +$ and for TALCO-WFAA, we modified the unidirectional align function of the WFA library (adopted in WFA-Adapt) to use the TALCO tiling strategy. We did this by modifying the compute function to forward the convergence pointers and check for convergence, while the reduce and extend function invocations remained the same. We measured each tool's processor and DRAM power utilization using BenchExec [50]. The peak memory utilization of each process was tracked using the VmPeak utility in Linux.

We further compared the alignment throughput of TALCO accelerators against the state-of-the-art GPU and ASIC aligners based on the code and RTL availability. We used the GPU implementations of the GACT [51] and Scrooge [10] algorithms for GPU baselines. We performed all GPU analyses on NVIDIA RTX A6000 GPU [52] and used NVIDIA Nsight [53] to collect the kernel runtime. For the ASIC baseline, we used the GACT-X RTL code available from Darwin-WGA [8]. GACT-X implements a tiling heuristic on the X-Drop algorithm, making it suitable for a direct comparison with TALCO-XDrop. We synthesized and executed GACT-X as described below to estimate its performance.

Figure 9 highlights the relative flexibility of different methods in their scoring function, as it tends to impact their relative speed and memory performance.

Fig. 9: Illustration of flexibility in the alignment scoring function of all evaluated tools, including TALCO. Tools with greater scoring flexibility tend to exhibit lower speed and memory efficiency but solve a more generalized formulation of the alignment problem with broader bioinformatic utility.

ASIC Area, Power, and Throughput Analysis: We used SystemVerilog to implement the RTL design of TALCO-XDrop and TALCO-WFAA accelerators described in Section IV. We used OpenROAD [54], with OpenRAM [55] as the memory compiler, to perform ASIC analysis of our designs and GACT-X through place-and-route on a FreePDK 45nm process technology [56] at the worst-case process-voltage-temperature (PVT) corner. Each of our accelerators was provisioned with the required number of DDR4-2400 channels, and DRAM

Fig. 10: Memory footprint of a single-thread CPU execution of Libgaba and TALCO-XDrop for aligning PacBio and ONT reads of different lengths with $15\%$ error rate.

Power (version 4) [57] was used to estimate the DRAM cycles and power. ASIC alignment throughput for TALCO-XDrop, TALCO-WFAA, and GACT-X was estimated using the maximum ASIC frequency reported from OpenROAD analysis and cycle counts required to align each pair of sequences on individual arrays derived from FPGA implementations of the accelerators (see below).

FPGA Analysis: To evaluate the achievable performance of TALCO-XDrop and TALCO-WFAA accelerators on FPGAs, we synthesized them on Xilinx Virtex UltraScale Plus xcvup-flgb2104-2-i FPGA [58] alongside the AWS shell [59] for deployment on the Amazon EC2 FPGA instances (f1.2xlarge). We were able to map 32 arrays of TALCO-XDrop, each with 16 PEs, and 16 arrays of TALCO-WFAA, each with 16 extend and 16 compute modules. The operating clock frequency was $115\mathrm{MHz}$ for TALCO-XDrop and $166\mathrm{MHz}$ for TALCO-WFAA. We also synthesized a single array of GACT-X with 32 PEs on Xilinx Virtex UltraScale Plus xcvup-flgb2104-2-i FPGA [58] with an operating frequency of $150\mathrm{MHz}$ to derive the cycle counts to align pairs of sequences.

VI. RESULTS AND DISCUSSION

Software Memory Footprint with TALCO: The TALCO tiling strategy can be used to improve the memory footprint of software aligners without affecting the alignment results. To quantify the benefits, we compared the memory footprints of software implementations of TALCO-XDrop and TALCO-WFAA with Libgaba and WFA-Adapt, respectively, for aligning reads of different lengths. Figures 10 and 11 show these results for the single-threaded execution of these algorithms. Since baseline algorithms use banding but do not incorporate tiling, their memory footprint increases linearly with read length. For Libgaba (WFAA), the memory footprint increased by $7\times$ $(14.5\times)$, from 33 MB (57 MB) to 260 MB (830 MB) as PacBio read lengths were increased from 10 Kbp to 100 Kbp, whereas the memory footprint of TALCO-XDrop (TALCO-WFAA) increased by only $1.1\times (1.8\times)$, from 6.2 MB (11 MB) to 6.54 MB (19.7 MB). A small increase in the memory footprint of the TALCO algorithms can be attributed to the memory needed to store sequences and their alignment in memory.

Because the memory footprint of the WFA-Adapt is also dependent on the rate of differences between the sequences being aligned, we further evaluate TALCO-WFAA and WFA-Adapt for aligning sequences of fixed length at different error rates in Figure 12. As expected, WFA-Adapt had a roughly $15\times$ higher memory footprint when the error rate of reads was increased from $1\%$ to $30\%$ whereas TALCO-WFAA had a lower, and roughly constant memory footprint, providing $10 - 30\times$ and $12 - 64\times$ improvement for PacBio and ONT reads, respectively (Figure 12). We also found that while BiWFA indeed improves the memory footprint of WFA and WFA-Adapt, its footprint is also large (100MB at $30\%$ error rate) and increases linearly with the number of differences (and therefore, with both alignment length and error rate) in the sequences being aligned, as shown in Figure 11 and 12. Therefore, TALCO-WFAA provided up to $5.3\times$ improvement in memory footprint over BiWFA as read lengths were increased from $10\mathrm{Kbp}$ to $100\mathrm{Kbp}$ (Figure 11). Furthermore, the memory footprint advantage of TALCO-WFAA over BiWFA in the software also increases with error rates, from $2\times$ to $8\times$ as the error rate increases from $1\%$ to $30\%$ (Figure 12). Over Edlib, TALCO-WFAA provides $1.08 - 1.8\times$ and $1.18 - 1.9\times$ improvement in memory footprint for PacBio and ONT reads, respectively, with memory savings increasing with read lengths (Figure 11). Edlib's memory performance is attributable to its more restrictive scoring policy (based on Levenshtein distance, Figure 9) that has limited bioinformatic utility. Moreover, TALCO can be used to tile Edlib's algorithm as well (see Section VII).

Fig. 11: Memory footprint of a single-thread CPU execution of WFA-Adapt, BiWFA, and TALCO-WFAA for PacBio and ONT reads of different lengths with $15\%$ error rate.

Fig. 12: Memory footprint of a single-thread CPU execution of WFA-Adapt, BiWFA, and TALCO-WFAA for 50Kbp PacBio and ONT reads at error rates.

Overall, TALCO is effective in reducing the memory footprint of existing algorithms, and the benefit increases with the increase in read lengths. This saving in memory footprint per thread from TALCO can also be exploited in software for

higher thread-level parallelism.

Speed of Convergence of Traceback Pointers: Because frontiers in phase 2 of TALCO incur redundant computations since they do not contribute to the partial alignment of the tile and are recomputed in the subsequent tile(s) (resulting in overlapping tiles). To evaluate the speed of convergence of traceback paths, we measured the efficiency of TALCO-XDrop and TALCO-WFAA as the average percentage of frontiers that were computed in a tile in phase 1 of TALCO for 50Kbp reads at different error rates. It is desired that a quick convergence occurs for higher efficiency as it indicates less redundant computation in phase 2. We observed that traceback pointers indeed converged fast, with average efficiencies of $95 - 97\%$ at low error rates $(1 - 5\%)$ and over $85\%$ in the worst case. This is an improvement over previous tiling approaches since they conservatively set tile overlap for all alignments, typically resulting in $75\%$ or lower efficiency [7], [8], [10].

Accelerator	Component	Configuration	Area (mm²)	Power (W)
TALCO-XDrop	Logic	32x(32PE)	4.60	12.8
	SRAM	32x(32x4KB + 1KB)	53.7	2.44
	DDR4-2400	4x32GB	-	3.79
	Total		58.3	19.0
TALCO-WFAA	Logic	16x(16x(Extend,Compute))	17.2	28.1
	SRAM	16x(32KB + 16x2KB + 1KB)	12.8	1.10
	DDR4-2400	4x32GB	-	3.79
	Total		30.0	32.9

TABLE II: ASIC analysis of TALCO-XDrop and TALCO-WFAA accelerator providing area and power breakdown of the individual components. The critical path delay of TALCO-XDrop and TALCO-WFAA was found to be $2.5\mathrm{ns}$ and $1.8\mathrm{ns}$ respectively.

ASIC Area, Power, and Frequency Analysis: Table II provides the area and power breakdown for each component of the TALCO-XDrop and TALCO-WFAA accelerators based on our RTL implementations.

For the TALCO-XDrop accelerator, we allowed storing $512\mathrm{KB}$ wavefronts (equivalent to 512 frontiers) in a single tile in each TALCO-XDrop array as it attained the maximum throughput/wait for all the read types in our experiments. Each array was provisioned with $128\mathrm{KB}$ of memory for tiling. An additional $1\mathrm{KB}$ memory was provisioned per array for storing convergence pointers. We synthesized 32 TALCO-XDrop arrays, each with 32 PEs, at $400\mathrm{MHz}$ maximum operating frequency, requiring an area of $58.3\mathrm{mm}^2$ and consuming $19\mathrm{W}$ of power, including the SRAM and DRAM components, as shown in Table II.

Similarly, we synthesized 16 TALCO-WFAA arrays for ASIC analysis and found a total area and power requirement of $30\mathrm{mm}^2$ and $32.9\mathrm{W}$ respectively, for a maximum operating frequency of $556\mathrm{MHz}$ (Table II). We configured the maximum wavefront length $= 128$ (corresponding to 128 frontiers) for TALCO-WFAA, since we found in our experiments that all wavefronts have $k_{max} - k_{min}< 90$ for all the read types, for chosen scoring parameters.

Fig. 13: Comparison of throughput/watt for ASIC and software implementation of TALCO-XDrop compared to the Libgaba algorithm executing on 32 CPU threads as the baseline.

Fig. 14: Comparison of throughput/watt for ASIC and software implementation of TALCO-WFAA compared to the WFAA-Adapt algorithm executing on 32 CPU threads as the baseline.

ASIC Performance Comparison with Baselines: Figure 13 compares the alignment throughput per watt of TALCO-XDrop ASIC and software implementation for PacBio and ONT datasets at different sequence lengths with the Libgaba algorithm executing on 32 CPU threads used as the baseline. We set $X = 100$ since it provided the best alignment scores for Libgaba on all reads in our dataset. TALCO-XDrop was configured to the same X-drop value to produce alignments with matching scores. As Figure 13 shows, TALCO-XDrop ASIC (software) achieved roughly up to $1,900\times (0.18\times)$ and $1,800\times$ $(0.20\times)$ improvement in throughput per watt over Libgaba for PacBio and ONT reads, respectively.

Similarly, Figure 14 compares the alignment throughput per watt of TALCO-WFAA ASIC and software implementation for PacBio and ONT datasets at different sequence lengths with WFAA-Adapt algorithm executing on 32 CPU threads used as the baseline. We used $\mathrm{W_{diff}} = 50$ setting for WFAA-Adapt as it produced optimal alignment scores for all reads in our dataset. TALCO-WFAA was tuned for the same $\mathrm{W_{diff}}$ value and scoring scheme to produce alignments with matching scores. WFAA-Adapt's remaining settings were configured as recommended by the WFA authors [38]. As Figure 14 shows, TALCO-WFAA ASIC (software) achieved roughly up to $1200\times$ $(0.4\times)$ and $2000\times (0.58\times)$ improvement over WFAA-Adapt for PacBio and ONT reads, respectively.

Figure 16 compares the alignment throughput of TALCO-XDrop and TALCO-WFAA ASIC implementation with all baselines for PacBio and ONT datasets at different sequence lengths with an error rate of $15\%$. These results should be viewed in the context of Figure 9 since different tools offer different flexibility in their alignment scoring function, which tends to impact their relative speed and memory performance.

Fig. 15: Percentage of alignments with optimal scores produced by TALCO-XDrop and previous tiling approaches, GACT, GACT-X, and Scrooge, for aligning 50 Kbp PacBio and ONT reads at different error rates. We used linear gap penalties for this experiment to ensure fairness to Scrooge as it does not support affine gap penalties.

Fig. 16: Comparison of throughput (alignments/sec) for ASIC implementation of TALCO-XDrop and TALCO-WFAA compared to the CPU, GPU, and ASIC implementation of baseline tools for PacBio and ONT datasets with an error rate of $15\%$.

For a fair comparison, all baselines were configured to obtain the maximum throughput without affecting the alignment score obtained from the recommended default settings. For example, after this tuning, we set GACT (Scrooge) parameters $\{T,0\} = \{320,120\} (\{w,0\} = \{64,33\})$. We note that, unlike TALCO, heuristic tiling approaches (GACT, GACT-X, and Scrooge) did not produce optimal alignment scores in many cases (Figure 15).

As Figure 16 shows, TALCO-XDrop accelerator achieved the highest alignment throughput among all methods, providing $180\times ,50\times$ and $1.1\times$ improvement over CPU, GPU, and ASIC baselines, respectively. Interestingly, TALCO-XDrop provided $1.1\times$ speedup even over GACT-X, which implements a tiling heuristic of X-Drop, while producing higher quality alignments. This can be partially explained by the fact that nearly $37\%$ of cells in GACT-X are redundantly computed in the overlapping regions of the tile, whereas TALCO has lesser redundancy on average as it leverages the fast convergence of pointers.

TALCO-WFAA accelerator also achieved over $65\times$ and $2.2\times$ improvement over CPU and GPU baselines, respectively, though it was found to be $7\times (6.3\times)$ slower than TALCO-XDrop (GACT-X) ASIC for this dataset. However, when the error rates are lower, TALCO-WFAA accelerator can provide speedup over TALCO-XDrop (GACT-X). For example, for the read dataset with $1\%$ error rate, we found the TALCO-WFAA accelerator to be $1.1\times (1.2\times)$ faster than TALCO-XDrop (GACT-X).

FPGA performance: We could synthesize 32 (16) arrays of TALCO-XDrop (TALCO-WFAA) each with 16 PEs (16 compute and 16 extend modules) along with AWS shell using Vitis Unified Software Platform on Xilinx Virtex UltraScale Plus (xcvu9p-f1gb2104-2-i) FPGA, clocked at 119 MHz (166 MHz). This implementation of TALCO-XDrop (TALCO-WFAA) provided a peak throughput of roughly 20,000 (6,000) alignments per second, $6.7\times (3.4\times)$ lower than ASIC for ONT and PacBio 10Kbp reads with $15\%$ error rate. In other words, for long alignments, even a single FPGA implementation using TALCO achieves 1-2 orders and 1 order of magnitude improvement in alignment throughput over the software baseline executing on 32 CPU threads and tiling-based GPU baselines, respectively.

VII. RELATED WORK

Algorithms: Dynamic programming (DP) is an immensely popular algorithmic paradigm in the field of bioinformatics. TALCO is a tiling strategy that can be easily applied to the many variants of the classical dynamic programming algorithms for specific pairwise alignment that has been developed for different bioinformatic applications over the years. For example, minimap2 [5], a popular long read aligner, uses a variation of X-drop banding strategy with a two-piece affine gap penalty for scoring alignments, which requires 5 DP matrices, instead of 3 in Gotoh. This alignment can be tiled using TALCO by requiring convergence of traceback pointers on all five matrices instead of just three in TALCO-XDrop presented in this paper.

It is also possible to extend TALCO to some exact pairwise alignment formulations that use banding to improve the average runtime of the search. For example, Ukkonen's algorithm [60] is guaranteed to behave equivalent to a classical dynamic programming algorithm without any banding, but it internally only considers cells within an exponentially increasing band around the main diagonal, resulting in $\mathcal{O}(ns)$ average runtime, where $s$ is the Levenshtein distance between the sequences. This algorithm was further improved in Myers' BitVector algorithm [61], which provided a constant factor improvement in runtime by exploiting bit-level parallelism, and in Edlib [48], which further added traceback support and new alignment options. These algorithms provide large improvements relative to the classical algorithms when the two sequences being aligned are similar, but have a restrictive scoring scheme based on Levenshtein distance.

Some other non-classical algorithms have also recently gained traction for sequence alignment. These include APA [62] and Astarix [63], which employ a form of A algorithm for finding exact global alignments. While these algorithms are not based on Dynamic Programming, they store traceback information, apply banding, and have a frontier (vertices of the priority queue) that is not significantly different from WFA. TALCO can therefore be used to optimally tile these methods. Bitap [64], [65] is another algorithm that uses bit-level parallelism to find the exact alignment of two sequences that have $k$ or fewer differences, where the differences are expressed in terms of Levenshtein distance. GenASM [9]

extended the Bitap algorithm to support traceback and applied a tiling strategy similar to the GACT algorithm to compute long alignments. Similar to GACT, GenASM cannot guarantee optimality even under banding. TALCO can be applied to GenASM to tile alignments while guaranteeing optimal results under banding constraints.

Dynamic Programming has also found applications in bioinformatics far beyond pairwise sequence alignment. These include multiple sequence alignment [66], [67], remote homology search [68], phylogenetics [69], base-calling [70], variant calling [71], and RNA secondary structure prediction [72]. Several of these algorithms can also be tiled with TALCO. For example, CLUSTAL [66] and MUSCLE [67], among the most cited bioinformatic tools, extend classical DP algorithms with position-specific scoring to align multiple sequences. HMMER [68] is a remote homology search tool that uses the Viterbi algorithm on a Hidden Markov Model trained on a multiple alignment of input sequences. Many emerging applications, such as pangenomics [73], [74], utilize dynamic programming for sequence-to-graph [74], [75], and partial-order alignments [76]. The underlying computation structure of many of these algorithms is quite similar to the classical DP algorithms, with both matrix fill and traceback steps to find the optimal alignment, making them amenable to tiling based on the TALCO strategy.

Accelerators: There has been a recent surge in the development of hardware accelerators for genomic workloads utilizing GPUs [10], [24], [77]-[81], FPGAs/ASICs [7]-[10], [22], [43], [82]-[100], and in-memory processing [101]-[111]. In particular, pairwise sequence alignment using dynamic programming has been a key focus in many accelerators [7]-[10], [24], [43], [77]-[79], [83]-[85], [87]-[99]. There has also been significant emphasis on accelerating it in commercial products, such as the FPGA accelerator developed by Illumina and the inclusion of DPX instructions in NVIDIA's latest GPUs [112], [113]. Commercial ASIC accelerators could also be warranted in the future due to the exponential growth of genomic data [114]. Hardware accelerators have traditionally encountered difficulties in maintaining the traceback pointers due to the fact that the memory requirements for traceback in most alignment algorithms and heuristics usually scale linearly or quadratically with the lengths of the sequences. Consequently, it is nearly impossible to store the traceback state for performing long alignments within the limited on-chip memory available on hardware accelerators. Additionally, even though off-chip memory has a higher capacity, it does not offer enough bandwidth to achieve significant acceleration, creating a further hurdle. To circumvent this issue, previous accelerators have employed one of the following four strategies. Firstly, some accelerators only deal with alignment scoring, omitting the traceback functionality, which severely limits their applicability, such as for pre-alignment filtering. Examples of such accelerators include LOGAN [77] and BioSEAL [105]. Secondly, several accelerators have restricted the length of alignments they handle. Accelerators such as GSWABE [78], GenAx [83], SeedEx [84], and ASAP [85] serve as examples of this category. Thirdly, some accelerators, such as FPGA-SW [87], use off-chip memory for storing traceback pointers in case of long alignments, which limits their achievable throughput. Finally, some recent accelerators have applied a heuristic tiling approach for handling alignments of arbitrary lengths, first proposed in the GACT algorithm of the Darwin co-processor [7] and was later adapted in other accelerators, such as GACT-X [8], GenASM [9], Scrooge [10], SeGraM [22], ABSW [23], Darwin-GPU [24] and RAPIDx [25].

of this category. Thirdly, some accelerators, such as FPGA-SW [87], use off-chip memory for storing traceback pointers in case of long alignments, which limits their achievable throughput. Finally, some recent accelerators have applied a heuristic tiling approach for handling alignments of arbitrary lengths, first proposed in the GACT algorithm of the Darwin co-processor [7] and was later adapted in other accelerators, such as GACT-X [8], GenASM [9], Scrooge [10], SeGraM [22], ABSW [23], Darwin-GPU [24] and RAPIDx [25].

One downside of the previous alignment tiling methods has been that they cannot guarantee optimality, which could degrade the quality of alignments in some cases and make it unattainable to preserve parity with non-tiling software methods. For example, authors in [115] tried to accelerate minimap2 on FPGAs by adopting the GACT-X algorithm but observed equivalent alignment in less than $95\%$ of cases. TALCO is a novel tiling approach that can guarantee optimal alignments under banding constraints and be applied orthogonally to each of the aforementioned categories of accelerators (CPU, GPU, FPGA, and ASIC). This development could broaden the applicability and lead to wider adoption of hardware accelerators in the bioinformatics community.

VIII. CONCLUSION AND FUTURE WORK

In this paper, we presented TALCO, a generalizable tiling strategy for banded sequence alignment algorithms. Unlike previous greedy tiling strategies, which cannot guarantee the quality of results and impose a barrier to the wider adoption of hardware accelerators in real-world applications, TALCO ensures that the alignment quality is not compromised due to tiling. This allows arbitrarily long alignments to be accelerated in hardware accelerators that have a fixed amount of on-chip memory to store the traceback state and achieve orders of magnitude gain in throughput and energy efficiency. TALCO leverages the convergence of traceback paths, which, as we demonstrate, appears to be a general property in both classical and non-classical algorithms for sequence alignment. When implemented in software, tiling with TALCO reduces the peak memory footprint of alignment algorithms by 1-2 orders of magnitude for long reads. We expect TALCO to be beneficial to a broad range of alignment algorithms and accelerators. In the future, we plan to apply TALCO to accelerate and improve the memory footprint of algorithms spanning a wide variety of bioinformatic applications, such as multiple-sequence alignment, sequence-to-graph alignment, and base-calling.

IX. ACKNOWLEDGMENTS

We thank Saeed Maleki for the helpful discussions. Research reported in this publication was supported by an Amazon Research Award (Fall 2022 CFP) and funding from the Hellman Fellowship and the U.S. Centers for Disease Control and Prevention through the Office of Advanced Molecular Detection (contract 75D30123C17463).
