Data & command interfaces
The transmitter and receiver cores incorporate AXI4-Stream interfaces for data ingress and egress. These AXI4-Stream interfaces include data and flow control signals only. In addition, there are supplementary control signals that are used to signal the timing of the data on the AXI4-Stream interface.
The AXI data input and output by the core contains 4-bytes per clock cycle per lane for 8B10B and 8-bytes per clock cycle per lane for 64B66B. The least significant byte position in each 32-bit or 64-bit block holds the first byte received from the ADC or transmitted to the DAC. The following figure shows an example of how AXI4-Stream data is mapped on to JESD204C using 8B10B encoding.
The AXI4-Stream interfaces transfer the JESD204C transport layer- not raw converter samples. Refer to the appropriate converter data sheet for information on correctly mapping samples into the transport layer.

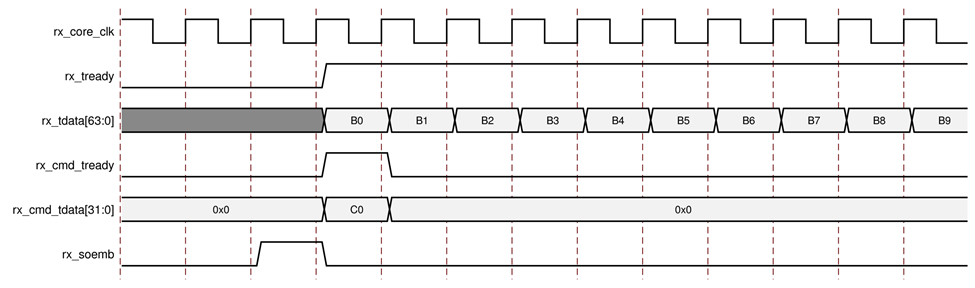

For a 64B66B receiver, the following figure shows the timing of the rx_soemb signal relative to the AXI4-Stream data rx_tdata. The rx_soemb signal is a single bit, and it is set High in the cycle preceding the first data block of an extended multiblock. The command interface will transfer one word every multiblock.
