Creating the Example Design for Versal Adaptive SoCs​

  1. In the AMD Vivado™ Design Suite, create a new block design in IP integrator.
  2. Add the JESD204C IP core to the canvas.
  3. Select the JESD204C IP core and configure exactly as required.
  4. Right-click the JESD204C IP, and select Open IP Example Design, from the drop-down menu as shown in the following figure. This opens a new Vivado project containing the complete RX or TX design example.

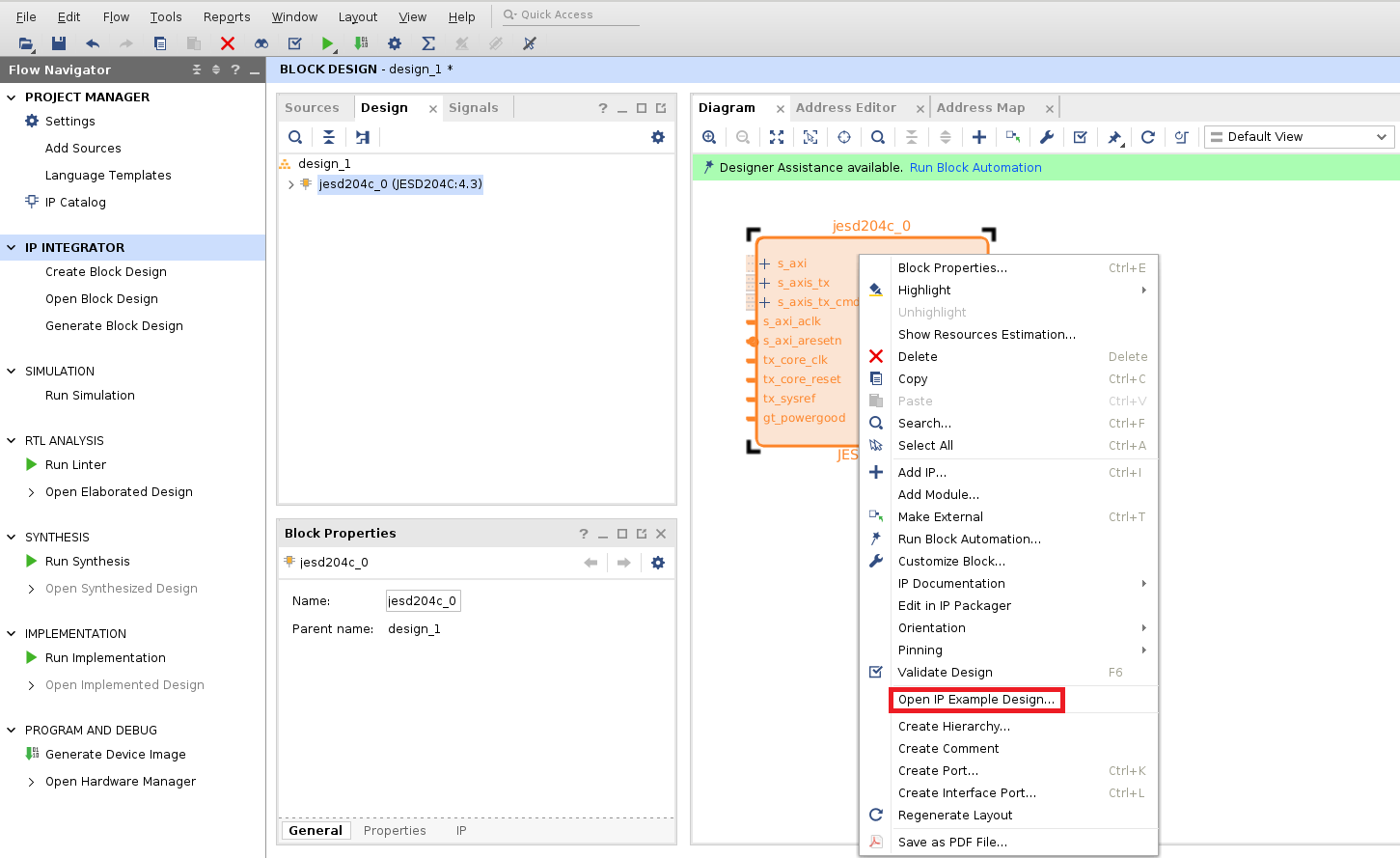

FIGURE: Opening the Example Design

Creating the Example Design for AMD UltraScale+™ and AMD UltraScale™ Devices​

  1. In Vivado, create a new empty project.
  2. Select the FPGA part that you wish to use.
  3. Using the Vivado IP catalog, select the JESD204C IP core and configure exactly as required.
  4. Right-click the block under Design Sources, and select Open IP Example Design, from the drop-down menu as shown in the following figure. This opens a new Vivado project containing the complete RX or TX design example.

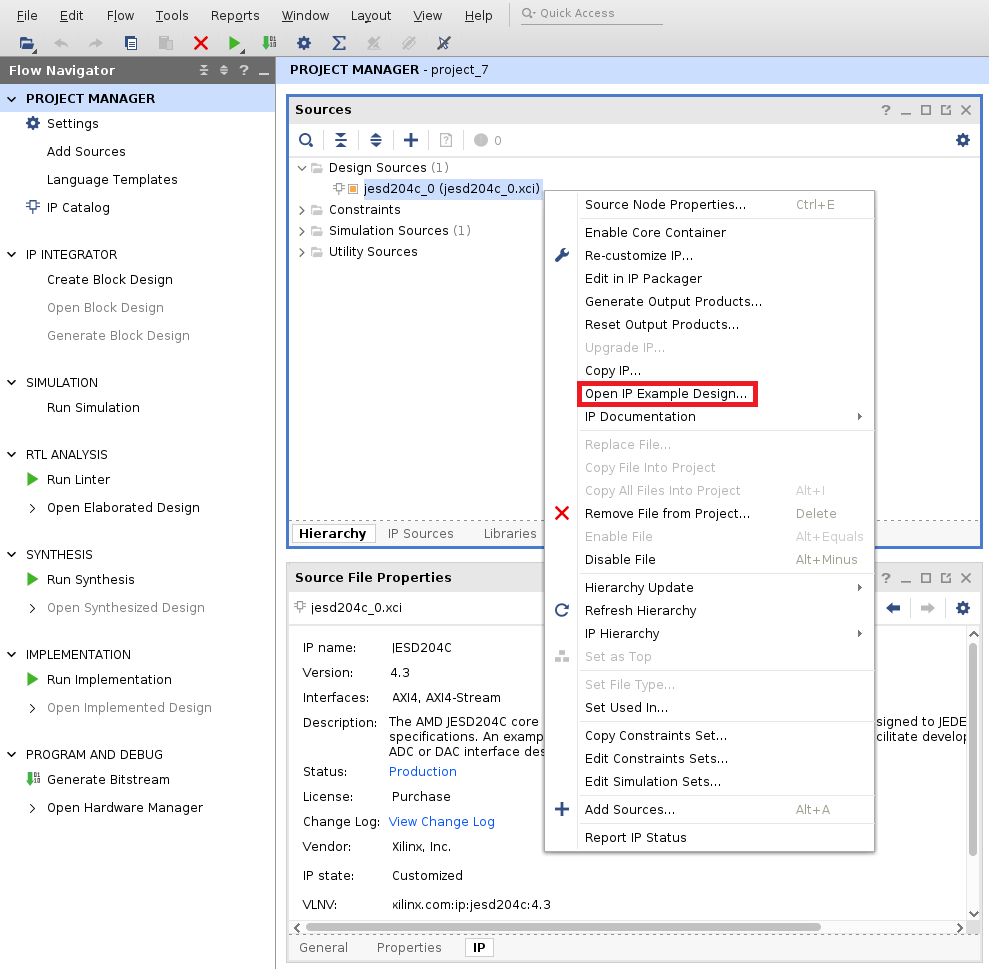

FIGURE: Opening the Example Design

Example Design Overview​

The following figures show an overview of the example design created for both a JESD204C TX and a JESD204C RX core. The design contains a full transmit and receive path example sharing a Versal Adaptive SoC Transceiver or JESD204_PHY core. The design will generate the JESD204C TX or RX core as configured in the IP catalog. A matching JESD204C TX or RX core will also be generated with settings to complement.

Main Blocks​

The design is composed of the following main blocks:

  • An AXI4-Lite interconnect block to provide multiplexed access to the TX, RX and PHY AXI4-Lite interfaces.
  • A simple pattern generator that generates analog sample data and control bits.
  • An example mapper that demonstrates mapping the analog sample data and control words into the JESD204C transport layer on the AXI4-Stream interface to drive the TX core. (Only in 64B66B cores.)
  • A simple command word generator that passes commands to the TX core. These commands are aligned with the values from the data generator.
  • A JESD204C TX core (configuration set in the JESD204C core IP catalog).
  • A Versal Adaptive SoC Transceiver core, either GT Quad or GT Wizard subsystem. Configuration is set in the JESD204C core GUI GT Wizard Configuration tab.
  • A JESD204_PHY core (configuration set in the JESD204C core GUI PHY Configuration tab).
  • A JESD204C RX core (configuration set in the JESD204C core IP catalog).
  • An example demapper that demonstrates the AXI4-Stream interface and the JESD204C transport layer back to analog samples and control words.
  • A simple pattern checker that checks the received sample and control words for correctness. (Only in 64B66B cores.)
  • A simple command word checker that checks the received command word for correctness.

Important Notes​

Note: The example design is intended to be used as a starting point for your custom design. It does not cover all possible configuration options of the JESD204C IP core.

Note: The I/O clock buffers necessary for the example design to function as a complete FPGA design are instantiated in the top level wrapper that encapsulates this example design.
